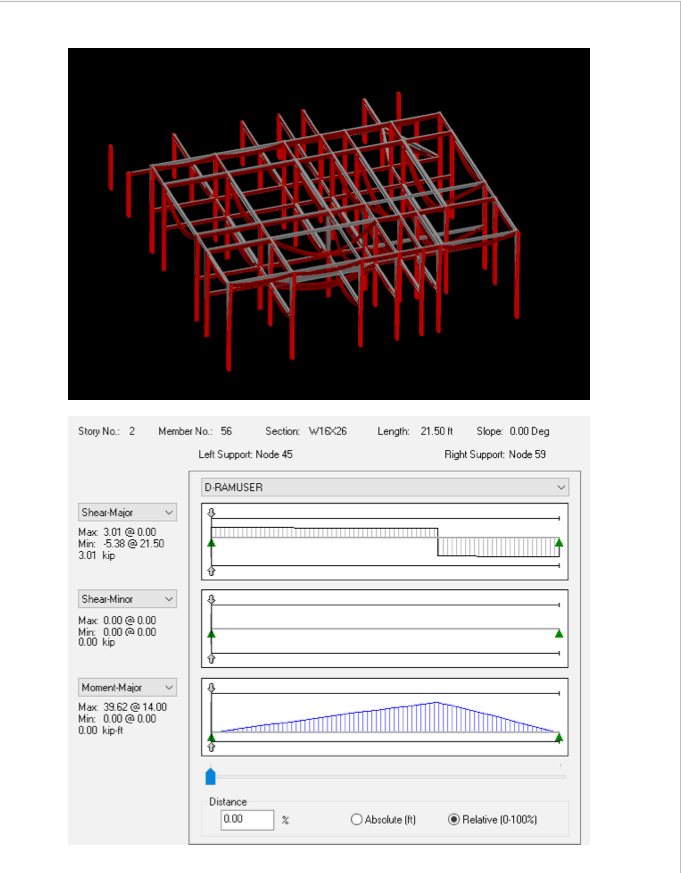

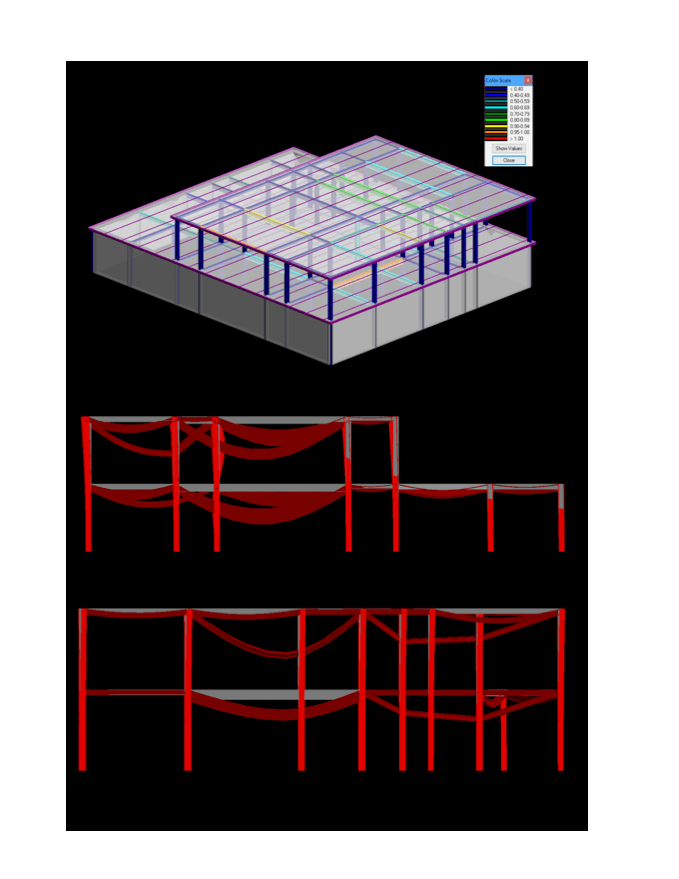

The Darma Music School located in Pennsylvania features a program that consists of two large music rooms with seamless glass frontal exposure, a large porch with benches, and a corridor waiting area. The structure consists of composite concrete and steel structures and features a moment connection lateral system. This school serves as a design study in both architectural rendering, architectural modeling, and structural analysis.
