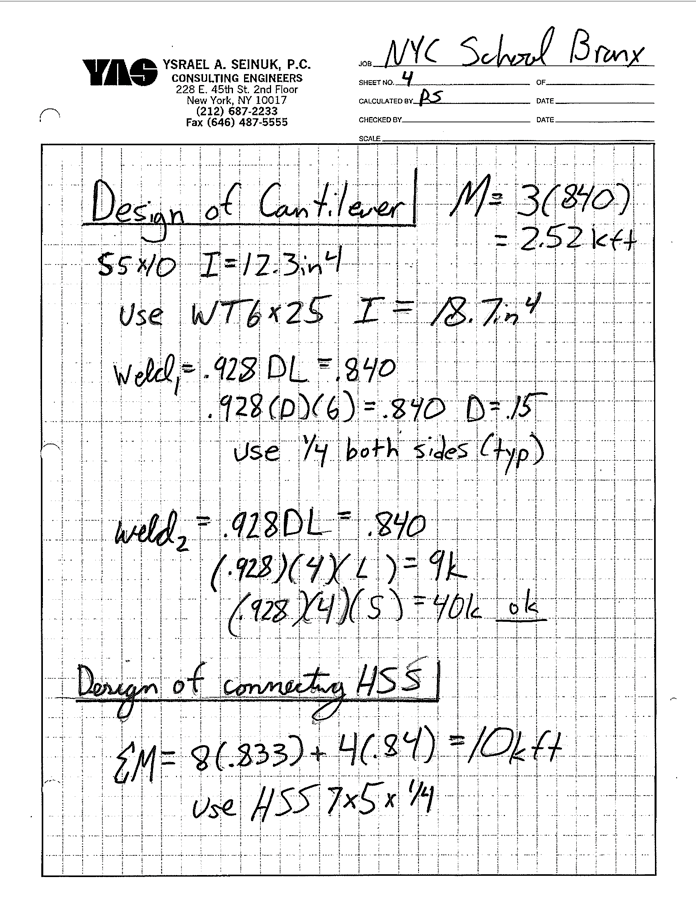

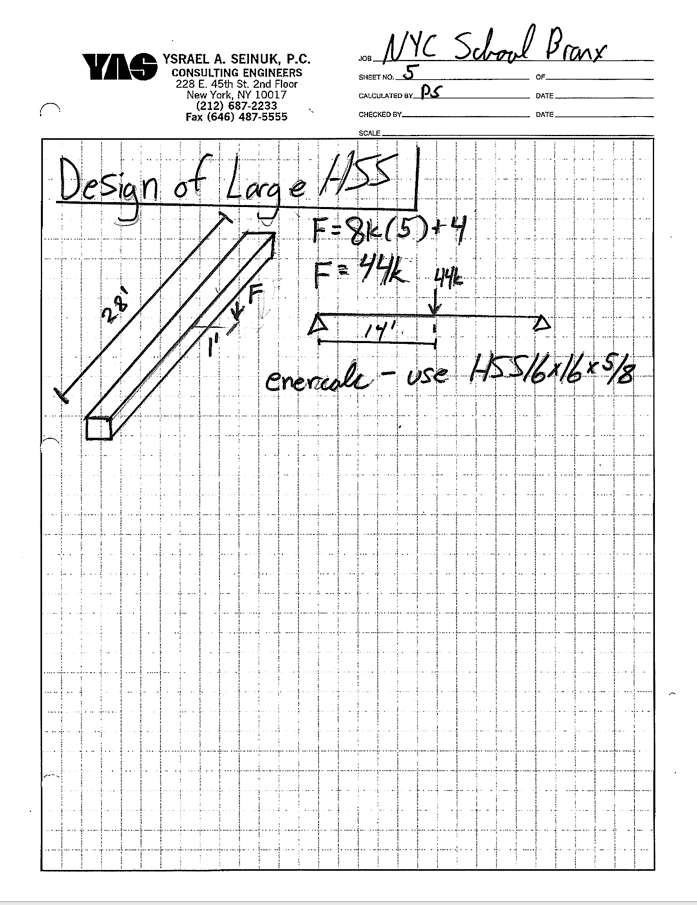

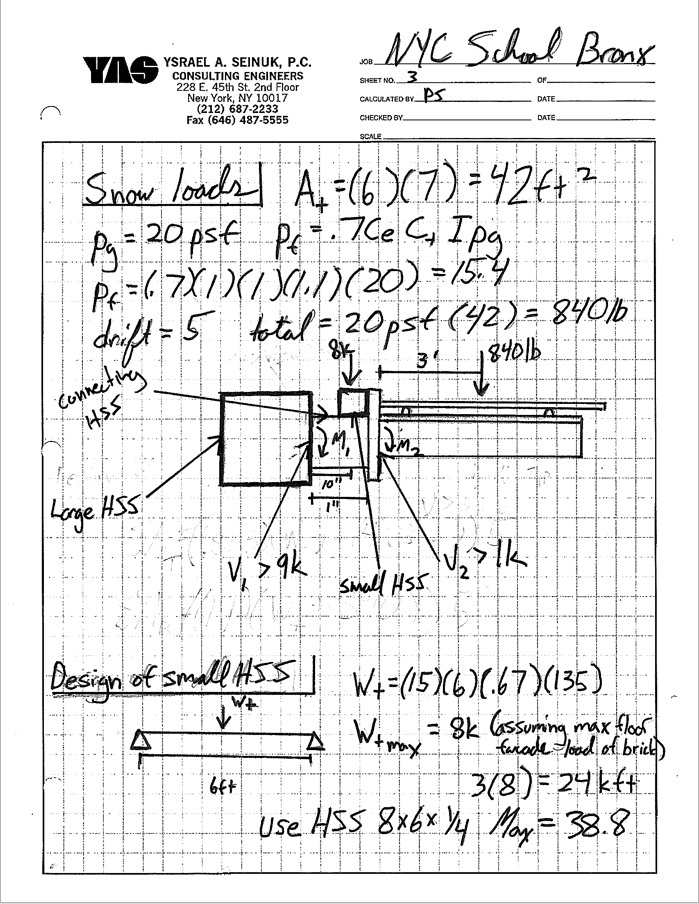

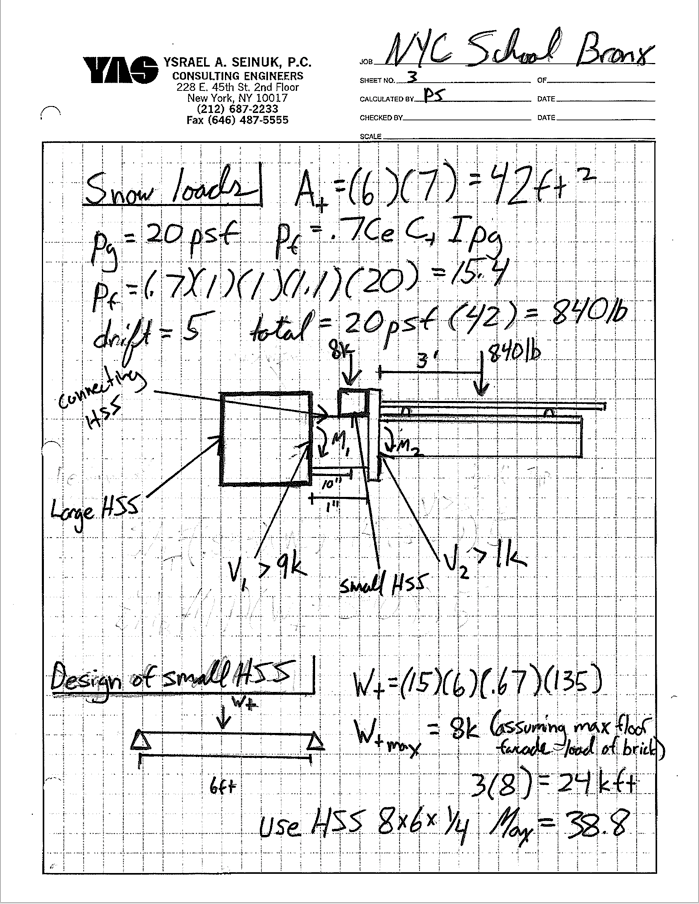

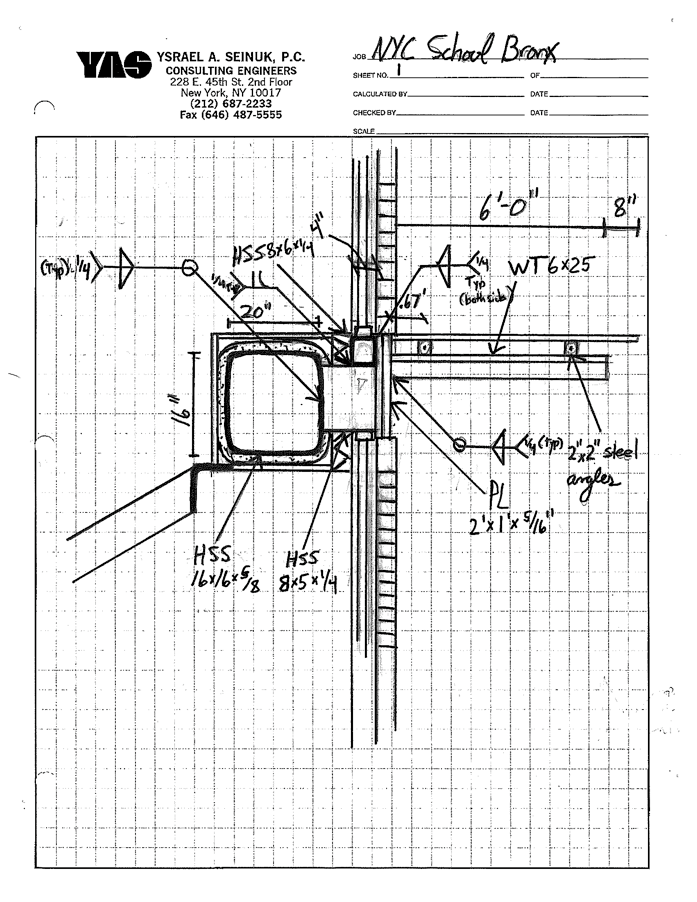

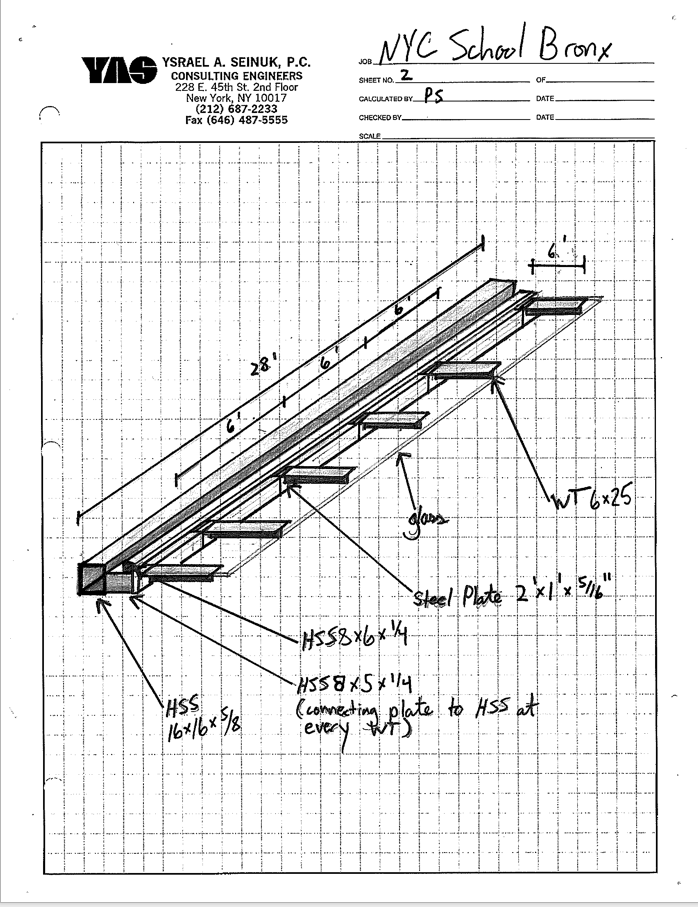

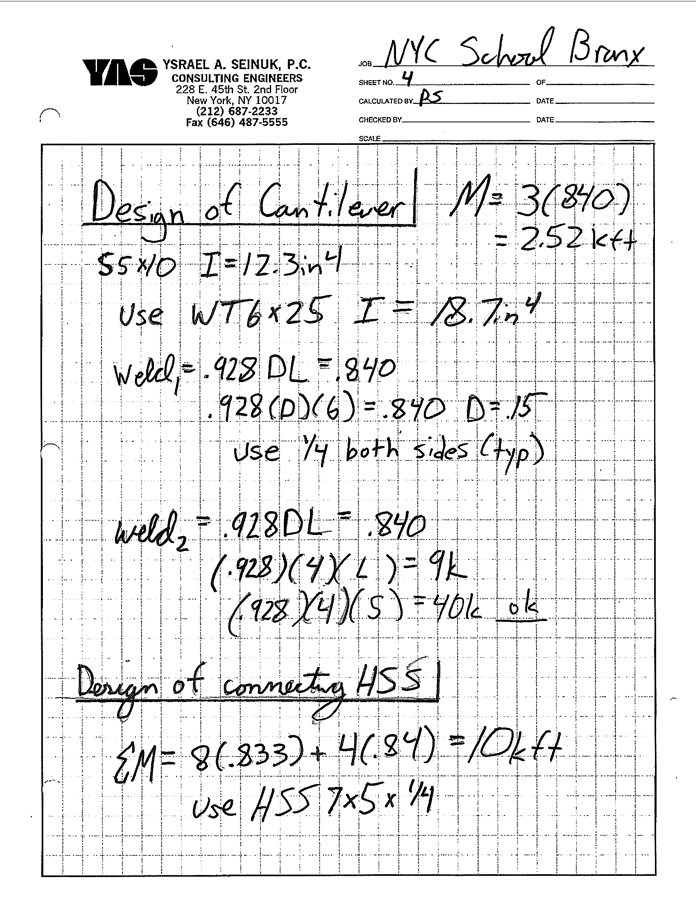

This canopy spans a total of 28 feet with outriggers spaced 6 feet apart that cantilever 6 feet outwards. The cantilever is a T shape steel section which supports glass. These T sections are anchored by a HSS tube 16×16 which takes bending and torsion.
